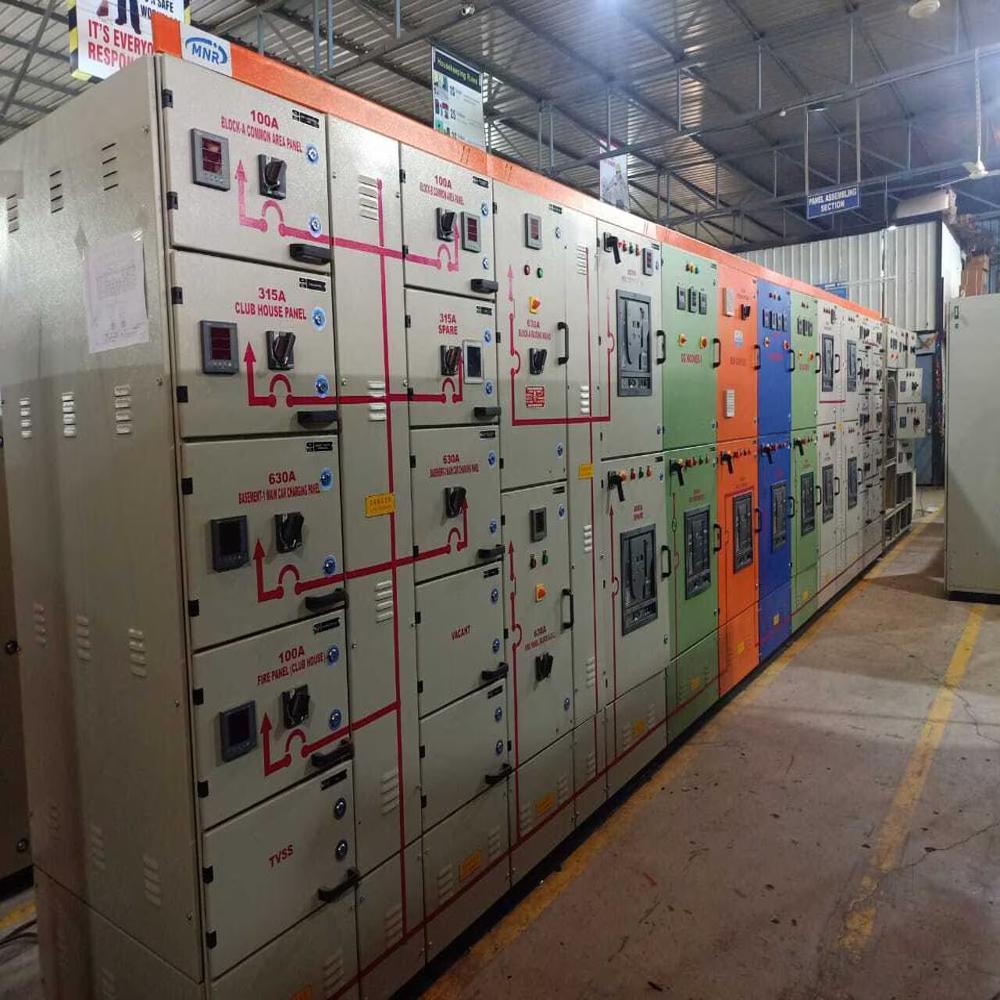

LT HT Panel Specification

  • Application
  • Power Distribution, Industrial & Commercial Setup
  • Frequency
  • 50 Hz
  • Operating Temperature
  • -10°C to +55°C
  • Product Name
  • LT HT Panel
  • Busbar Material
  • Copper / Aluminium
  • Voltage
  • 415 V (LT), 11 kV/33 kV (HT)
  • Short Circuit Withstand
  • Up to 50 kA for 1 Sec
  • Rated Current
  • Up to 6300A
  • Protection Class
  • IP42/IP54/IP55
  • Form of Separation
  • Form 2, 3 & 4
  • Phase
  • Three Phase
  • Type
  • Indoor / Outdoor
  • Standards
  • IEC 61439-1 & IS 8623
  • Body Material
  • Mild Steel, Powder Coated Finish
  • Mounting Type
  • Floor Mounted / Wall Mounted


LT HT Panel Trade Information

  • Minimum Order Quantity
  • 800 Square Foots
  • Supply Ability
  • 100 Square Foots Per Month
  • Delivery Time
  • 1 Week
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Asia


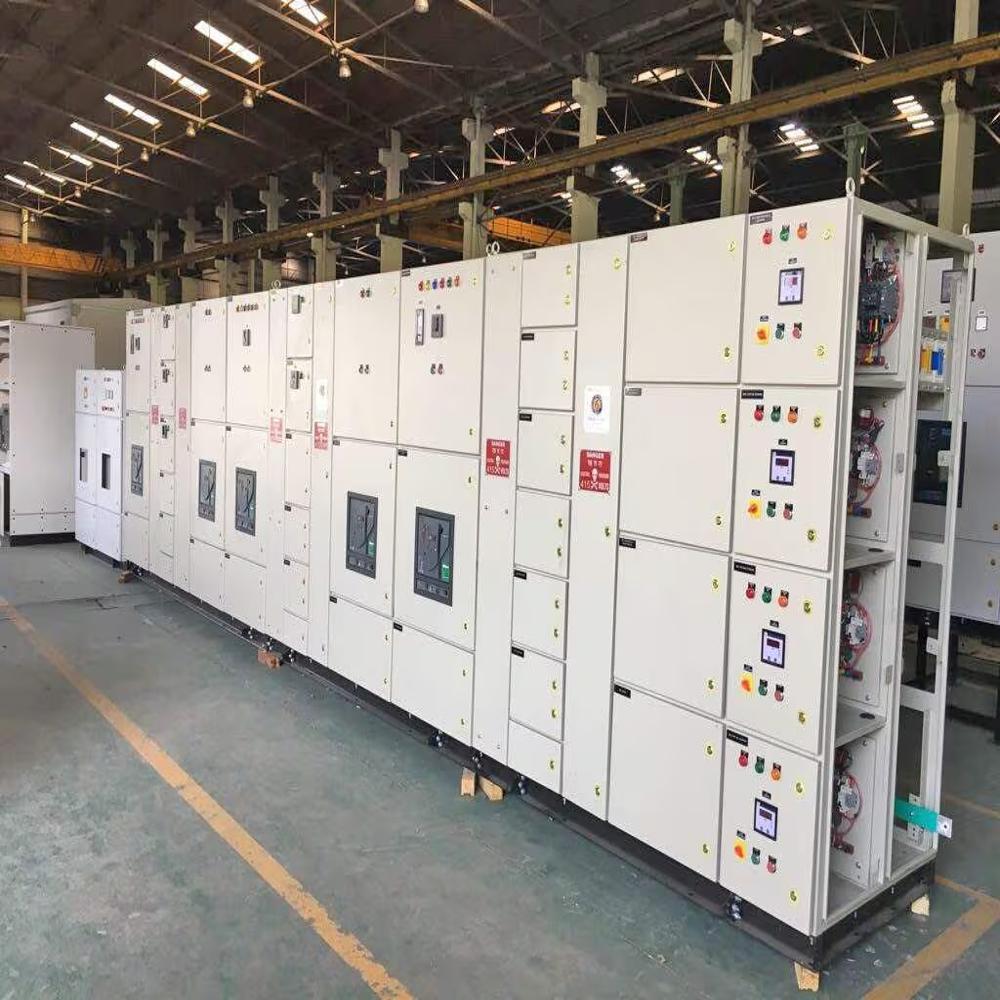

About LT HT Panel

  • Used for distribution of electrical power at low voltages, typically up to 440V.

  • Features MCBs, MCCBs, ammeters, voltmeters, selector switches, and indicator lamps.

  • Handles the power after it has been stepped down from high voltage.

  • Installed in commercial complexes, factories, and residential buildings.

  • Ensures safe and controlled power distribution to various sub-circuits and loads.

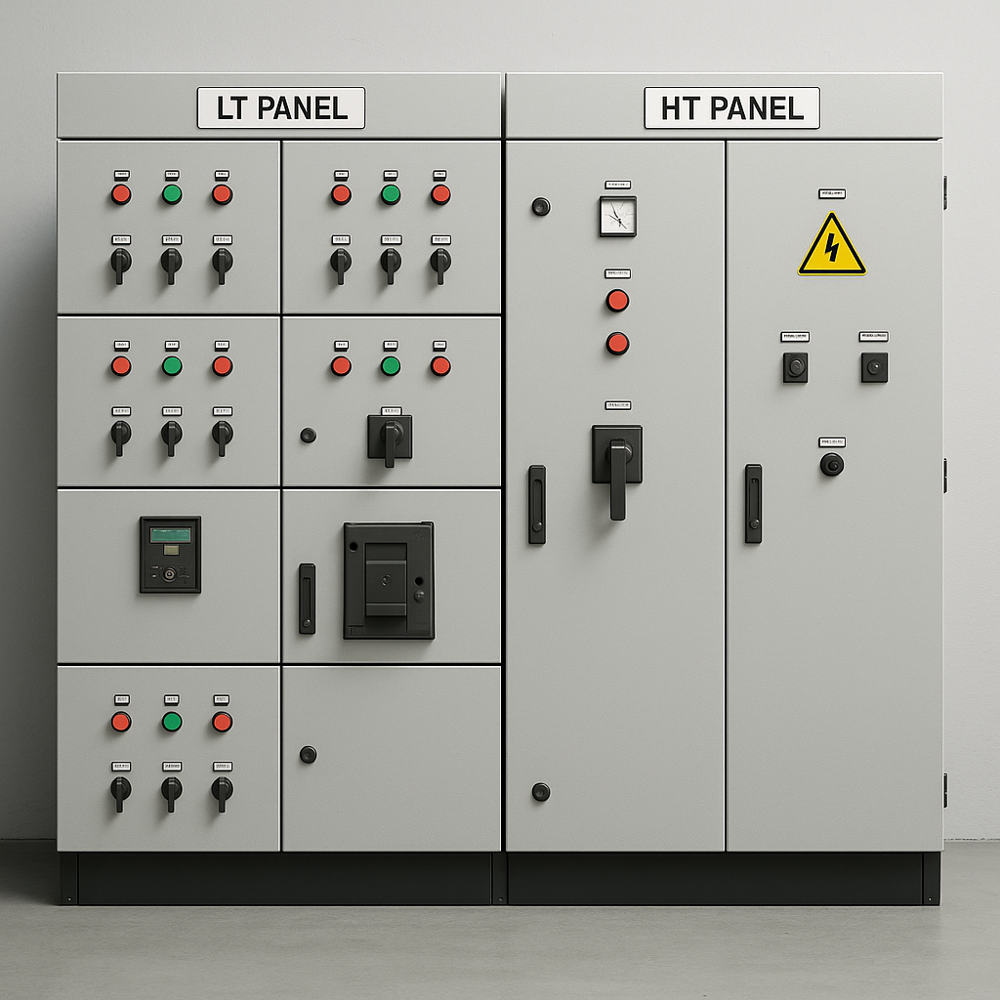

HT Panel (High Tension Panel):

  • Designed for receiving and distributing high voltage power, typically from 11kV up to 33kV.

  • Equipped with circuit breakers (VCB, SF6), protective relays, and isolators.

  • Usually installed at substations or large industrial facilities.

  • Used to control and protect electrical networks in high voltage conditions.

  • Includes warning signage for high voltage safety.

Together, these panels are essential in electrical power distribution systems the HT panel manages and protects incoming high-voltage supply, while the LT panel distributes it safely at usable.



Versatile Mounting and Proven Protection

Choose between floor-mounted or wall-mounted types to suit your site's layout. The LT HT Panel is designed for both indoor and outdoor installations, featuring high ingress protection ratings (IP42/IP54/IP55) to guard against dust and water, ensuring reliable operation under a variety of environmental conditions.


Built to International Standards for Reliability

Manufactured in compliance with IEC 61439-1 and IS 8623, LT HT Panels guarantee safety and performance according to globally recognized standards. Their construction allows operation in extreme temperatures and withstands short circuits (up to 50 kA/1 sec), providing consistent power distribution and peace of mind.


Flexibility for Industrial and Commercial Applications

These panels cater to different phases and voltages (415V LT, 11kV/33kV HT) and support rated currents up to 6300A, making them perfect for scalable operations in factories, commercial complexes, or large infrastructure projects. Their robust mild steel build, copper/aluminium busbars, and powder coating ensure longevity.

FAQ's of LT HT Panel:


Q: How can I select the most suitable mounting type for an LT HT Panel?

A: Selecting between floor-mounted and wall-mounted types depends on your site's available space, load requirements, and ease of maintenance. Floor-mounted options are ideal for high-capacity needs and larger spaces, while wall-mounted panels save floor area and are suited for compact installations.

Q: What process is followed in manufacturing an LT HT Panel according to standards?

A: The manufacturing process strictly adheres to IEC 61439-1 and IS 8623 standards, including precise fabrication of mild steel bodies, powder coating for corrosion resistance, assembly of copper/aluminium busbars, and thorough testing for short circuit withstand, temperature range, and ingress protection class.

Q: Where are these LT HT Panels commonly installed?

A: LT HT Panels are widely installed in various settings across India, such as industrial plants, commercial buildings, power distribution networks, and infrastructure projects, for both indoor and outdoor use, ensuring reliable operation in diverse environments.

Q: When should I opt for a Form 2, 3, or 4 form of separation in the panel design?

A: The form of separation (Form 2, 3, or 4) should be chosen based on the level of safety, maintainability, and continuity required. Higher forms like Form 3 or 4 are recommended for applications needing maximum isolation and easy component maintenance during live operations.

Q: What benefits do copper and aluminium busbars offer in LT HT Panels?

A: Copper busbars ensure excellent conductivity and reliability under high current loads, while aluminium options provide a cost-effective and lightweight alternative. Both materials allow for efficient current distribution and integration into different types of power systems.

Q: How do IP42, IP54, and IP55 protection classes impact the usage of LT HT Panels?

A: The ingress protection (IP) classes define resistance to dust and water. IP42 is suitable for standard indoor environments, IP54 offers better dust and splash protection, while IP55 is ideal for harsher or outdoor settings where dust and water jets are present.

Q: What advantages do these panels provide for industrial and commercial setups in India?

A: LT HT Panels deliver robust power management, adaptability to extreme conditions, compliance with international standards, and flexibility in design. These attributes enhance operational reliability and facilitate seamless integration into complex power distribution systems.
